28V power supply, PAS acoustic emission sensor preamplifier with optional gain of 20/40/60 dB

Product description:

1.PAS AE preamplifier series are wideband -universal models, which can match with most common sensor models and AE acquisition cards for each factory;
2.Three gain gears to choose: 20/40/60dB;
3. Two input ways: sigle-ended/difference;
4.Two kinds of power supply modes: phantom power supply, the power supply is carried by the signal line; or direct power supply from external power supply;
5.Built-in filter, relevant frequency are divided to four gears ;
6.Be equipped with protection capacity against electric shock and recoverability anti-blocking phenomenon;
7.AST (Automatic sensor test) function, can send out test signal resource to the sensors ( under the condition of phantom power supply);
8. Metal shell, shield electromagnetic interference ,resist shock.

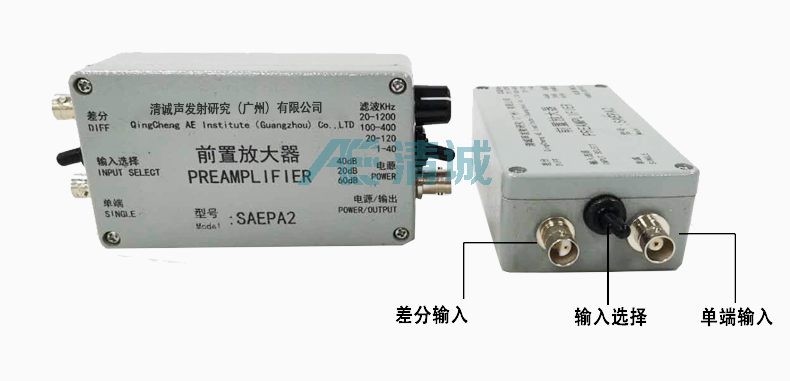

Interface function
	Output terminal: amplified signal output, phantom power input Power input: 24V—32V, 100mA DC input, positive inside and negative outside Filter knob: the white scale corresponds to the reserved signal frequency band Gain gear selection: the three gear positions correspond to 40dB (100 times), 20dB (10 times), and 60dB (1000 times) amplification respectively
	Both differential input and single-ended input refer to the signal output type of the acoustic emission sensor, and the stay side of the input selection toggle switch is the currently selected interface The input signals are all analog oscillating voltage signals

Company Information:

Shanghai Liangui Technology Co., Ltd. is committed to promoting the prosperity and development of the world through technology, focusing on Intelligent Equipment & Automation Solutions to to help enterprises to improve production process and minimize the cost.

We are an intelligent equipment & automation solution integration service provider. Our company has a professional foreign trade sales team and an experienced technical support team, the principles of our team work is customer first and fast solution. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robot, Mechanical and Electrical Equipment etc.

Our NDT testing division is specialized in the R & D, production, sales and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detector, Ultrasonic Thickness Gauge and other Testing Instruments. Our R&D team has the ability to develop Sensors, Electronic Measurement Software and Hardware, we can also customize Non-standard Automated and Robotic Inspection Equipment for customers. Our products mainly used in Industrial Field (Aerospace, Railway, Automotive, Oil & Gas, Manufacturing, Process Industry ) and Power Generation (Renewable, Nuclear, New Reactors, Advanced Reactors, Research Reactors, Gas Combined, Coal, Cogeneration).

Our objective is to always help our clients meet their high safety standards, proposing efficient inspection solutions based on global services which reduce costs and increase process efficiency, make industrial facilities and power generation to operate safely, efficiently and excellently. Our major products AE system and instruments have been sold to China, USA, UK, Brazil, Indonesia and so on, which win the trust and support of customers from all over the world with an excellent reputation.


Performance characteristics:

● The PAS preamplifier is a broadband universal type, which can be applied to most common types of sensors and acoustic emission acquisition cards from various manufacturers;
● The pre-amp gain has three options of 20/40/60dB;
● Two signal input methods, single-ended/differential;
● Two power supply modes are available: phantom power supply, which is carried and supplied by the signal line; or direct power supply from an external power supply.
● Built-in filter, the corresponding frequency is divided into 4 gears for selection;
● It has the ability to protect against electric shock and the ability to recover from blocking phenomenon;
● Automatic sensor test (AST) function, which can send out a test signal source to the sensor (in the case of phantom power supply);
● Metal shell, shielding electromagnetic interference, anti-shock.

Basic technical parameters:

Gain: 20/40/60 dB optional
Response frequency: 1.3kHz～1.2MHz
Noise: <24dB (40dB gain input terminal is shorted)
Built-in filter: 20kHz-1200kHz, (20kHz-630kHz at 60dB gain)
100kHz-400kHz
20kHz-120kHz
4 ranges from 1kHz-40kHz
Output range: ±10V (Vpp)
Input capacitive reactance: 15pF
Working voltage: 28V DC (24V-32V)
Rated load: 50Ω
Quiescent current: 35 mA
Maximum output current: 40 mA
Working temperature: -20℃～﹢60℃
Size: 110mm×65mm×37mm
Protection level: IP65
Shell material: cast aluminum
Interface type: 2 BNC (Q9) interfaces, differential BNC interface, power interface


Technology Application:

1. Spherical tank inspection
2. Gas cylinder group in station
3. On line monitoring of amusement facilities
4.On line monitoring of bridge sling
5. Machining process monitoring
6. Inspection of high pressure elbow
7. Insulator crimping
8. Pitch bearing
9. Material tensile test
10.ISAE intrinsically safe explosion proof tower monitoring
11. High pressure manifold valve
12.Application of acoustic emission in wind tubing bearing monitoring.
